3D Tube Measurement
TubeInspect adapters - Measure tubes with any endpoint or bend point geometry
TubeInspect adapters make measurements possible of unique tube geometries that cannot be measured by the standard TubeInspect configuration. An adapter is an auxiliary tool to measure additional features. TubeInspect Adapters fit directly at tube ends while the software calculates the reduction offset generated by the adapter.
Holes and Holders
Straight on and elbow adapters

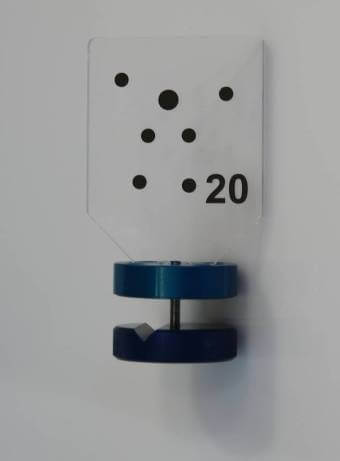

7-point Position and axis adapters

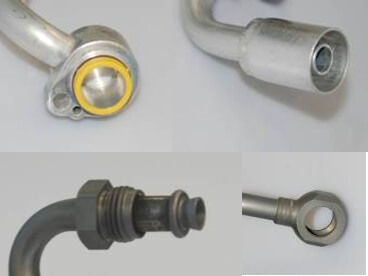

Special Ends
Connection adapters
- Used for screw mounts at tube ends. e.g. brake lines.
- The software compensates for the length of adapters to provide a repeatable measurement of the formed end.

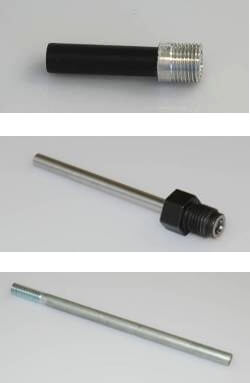

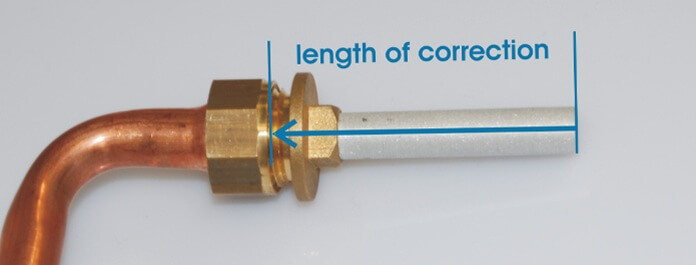

Straight On Adapters

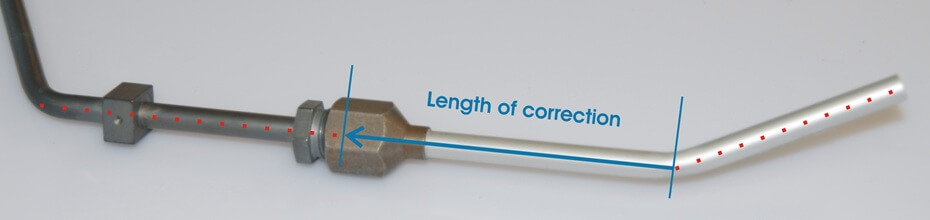

Elbow Adapters
- Used for measurement of holes, holders and special ends.
- Adapters consist of 7-point target, whose 3D-coordinates are measured .
- A pre-defined reference position and direction vector is used for the correction.
- Results are displayed in a graphic and table.
-
Can be used for merging overlapping measurements of a tube with a long straight segment e.g. brake tube.
-
The software can connect multiple measurements using the information of the adapter.
-
The adapter is visible in both measurements.
-
The fixing of the adapter is held steady along a long straight line during the measurements.

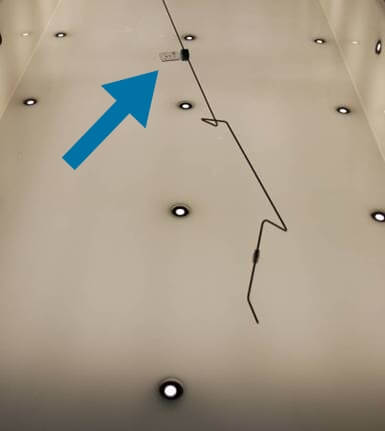

The adapter is clamped into position along the mid-sections of a tube that is too long to be measured in a single location. The tube can now be measured in two sections. TubeInspect will identify the common point and will automatically join the sections together to create a 3D model of the entire tube.

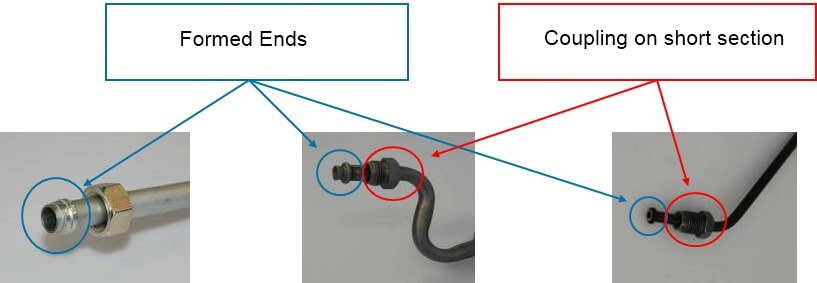

- For measurement of hidden ends
- Automatic calculation of the tube endpoint by measuring the end of the adapter
- Measurement of an additional bending point.
- Automatic calculation of the tube endpoint by measuring the adapter bending point
